RUBBER BAND POWERED RACER KITS

The Sling-Shot is the worlds fastest rubber band powered racer and will travel a 5-meter distance in less than 1 second. The Sling-Shot success comes from it's ultra-sticky foam wheels and it's unique pulley launch system that is designed to maximizing the transfer of potential energy into the kinetic energy with almost no loss of energy. The Sling-Shot Kit comes ready-to-assemble with pre-cut and pre-drilled parts so you can be ready for action and racing on the same day. As with all our kits, The Sling-Shot Kit comes with our complete step-by-step instruction guide that is written the for the visual learner filled with tons of top secret performance tips and tricks that have been developed exclusively by Doc Fizzix, with over 30 years of experience, so you will have all the information you need to make your Sling-Shot Racer Kit a winner. The Sling-Shot takes a bit work to build than other rubber band racer kits and some cutting and drilling may be required by the builder.

The biggest challenge with all high-speed and high torque contests is wheel traction. If wheels do not have enough traction, your racer will spin its wheels at the start wasting precious energy. The Sling-Shot Racer comes with two ultra sticky, low inertia foam wheels that are made from a very sticky lightweight urethane that is designed to grab any floor surface creating maximum traction while generating rocket accelerations. While the rest of the competition is spinning their wheels at the start line your Sling-Shot racer will be flying across the finish line in record time.

As wtih all our top rubber band racers, The Sling-Shot uses our all new revolutionary pulley launch system that is designed to maximized the potential energy of a stretched rubber band into kinetic energy with almost zero loss of energy. The secret to the pulley launch system is that it is designed to stretch the rubber band longitudinally instead of twist winding as is common with most other rubber band vehicles; our launch system will double the power output and double the torque of the system causing The Sling-Shot to "rocket" off the start line giving it an almost unfair advantage over the rest of the competition.

Travel Speed:

5 meters in 1 second*

Top Highlights:

• Fastest rubber band powered racer anywhere designed to travel 5 meters in less than 1 second.
• Features our revolutionary pulley launch system designed to maximize the transfer of energy from a stretched rubber band into linear motion.
• Comes with our ultra-sticky foam wheels for maximum wheel traction capable of generating rocket accelerations.
• The perfect rubber band vehicle kit for beginners and seasoned veterans alike. Designed and engineered for your success. Comes ready-to-assemble with pre-cut and pre-drilled lightweight balsa wood frame.
• This rubber band car kit comes with lightweight, 3/16" inch diameter brass tubing axles that spin freely with less friction for an increase in both speed and distance. Brass tubing axles do not warp like wooden dowels and provide for a much smoother ride without wobble.
• Features Doc Fizzix's "easy-wind", "snag-free" propulsion system designed specifically for rubber band powered racers.
• Comes with our complete step-by-step instruction guide that is written the for the visual learner filled with tons of top secret performance tips and tricks.
• Finished vehicle measures approximately 4 x 4.5 x 12 inches (H x W x L)
• All our products are 100% made in the U.S.A by Doc Fizzix in Spicewood, TX.

Assembly Time:

The Sling-Shot Racer Kit can be assembled in less than 45 minutes for most first time builders and when finished it will travel 5 meters in 1 second.

Skill Level:

Required Skills

• Some knowledge of how a rubber band racer works.
• Able to measure with a ruler in both inches and/or centimeters.
• Experience working with wood glue and/or Cyanoacrylate glues (Super Glues).
• Able to glue two pieces of balsa wood together.
• Able to tie a loop knot in string.
• Able to use needle nose pliers to cut wire.
• Able to cut paper using a scissors.
• Able to make somewhat "straight"cuts with a hobby knife in balsa wood.
• Can problem solve during construction and make adjustments.

Recommended Skills

• Able to sand parts to make them smooth.
• Can determine how to make adjustments to improve performance.

Tools Required:

• Needle-nose-pliers
• Wood or Super glue
• X-acto knife or hobby knife (Recommended)

*Kits require assembly, actual results will vary and depends on the constructions skills of the builder, glue and tools not included.

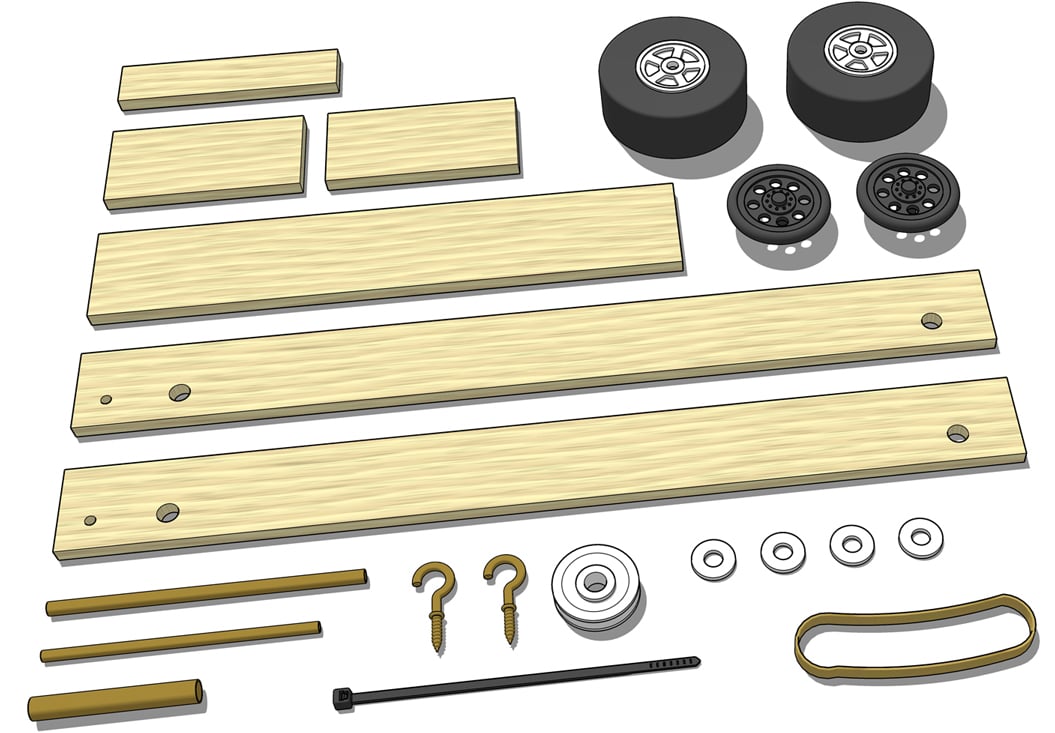

Includes the following:

• 1x - #65 rubber bands
• 1x - Pulley Launch System
• 2x - Pre-cut and pre-drilled balsa wood frame
• 1x - Pre-cut balsa wood deck top
• 2x - Ultra Sticky foam wheels
• 2x - Low inertia dragster front wheels
• 2x - 4.5" inch Brass tubing axles
• 4x - Thrust washers
• 2x - L-Hook
• 1x - 18 inches Kevlar high-tech string
• Doc Fizzix's easy-wind, snag-free propulsion system
• Step-by-step plans with performance tips and tricks

Record Setting Design

The Sling-Shot Racer is the fastest rubber band powered racer kit anywhere and was designed after Doc Fizzix's own record-setting rubber band racer that traveled 5 meters in 1.0 seconds. The Sling-Shot Racer is an easy-to-build top performing rubber band racer that is perfect for all high torque and top speed contests. The Sling-Shot Racer is geared to constantly gain velocity from the start line to the finish line so there is no slowing down before it crosses the finish line. The Sling-Shot Racer will reach its maximum velocity at 4.5 meters from the start line, 0.5 meters before it crosses the finish line.

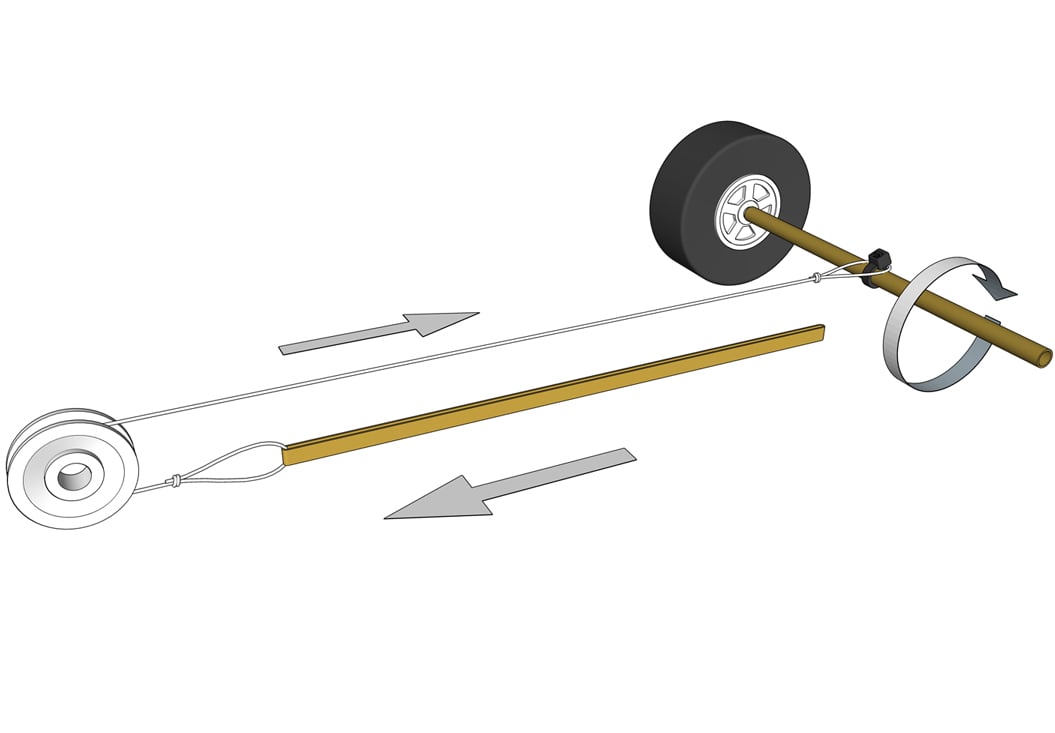

Pulley Launch System

This is most advanced and efficient rubber band propulsion system ever designed for propelling a rubber band powered vehicle. The secret behind Doc Fizzix's top secret propulsion system is the advanced pulley system that allows a rubber band to be stretched to it's maximum capacity for maximum potential energy. The trouble with almost all other rubber band propulsion systems is that the rubber band is twisted or wound in order to store energy, the Doc Fizzix's rubber band propulsion system stretches the rubber band and this provides a more uniform transfer of potential energy and also maximizes the total amount of energy available generating rocket accelerations off the start line.

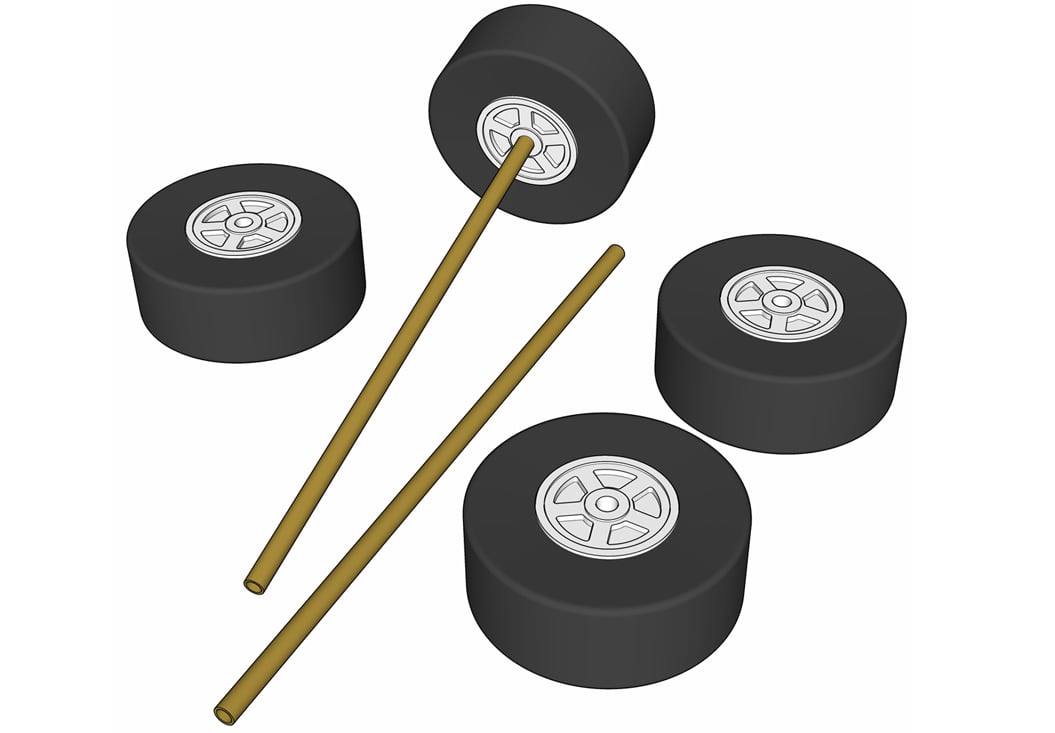

Ultra-Sticky Foam Wheels

The biggest challenge with all high-speed and high torque contests is wheel traction. If wheels do not have enough traction, your racer will spin its wheels at the start wasting precious energy. The Sling-Shot Racer comes with two ultra sticky, low inertia foam wheels that are made from a very sticky lightweight urethane that is designed to grab any floor surface creating maximum traction while generating rocket accelerations. While the rest of the competition is spinning their wheels at the start line your Sling-Shot racer will be flying across the finish line in record time.

Our Ultra-Sticky Foam Wheels wheels are manufactured specifically for Doc Fizzix Products and are the exact same wheels that were used on Doc Fizzix's world record setting rubber band racer that traveled 5 meters in 1 second. By far, the biggest secret to Doc Fizzix world record setting Sling-Shot racer was the use of these ultra sticky foam wheels that were essential in keeping his Sling-Shot Racer from spinning out at the start line by providing maximum traction to the floor surface. Ultra sticky foam wheels are 2 inches in diameter and machined to fit a 5/32 inch axle

Easy-wind, snag-free propulsion system

As with all our top rubber band racer kits, The Sling-Shot Racer includes our "easy-wind" and "snag-free" string release system that will not tangle and/or snag on release for increased performance, a technique developed exclusively by Doc Fizzix for mousetrap and rubber band powered racers. Our snag-free propulsion system is designed to release from the drive axle once the pulling force is complete in order to maximize the coasting distance.

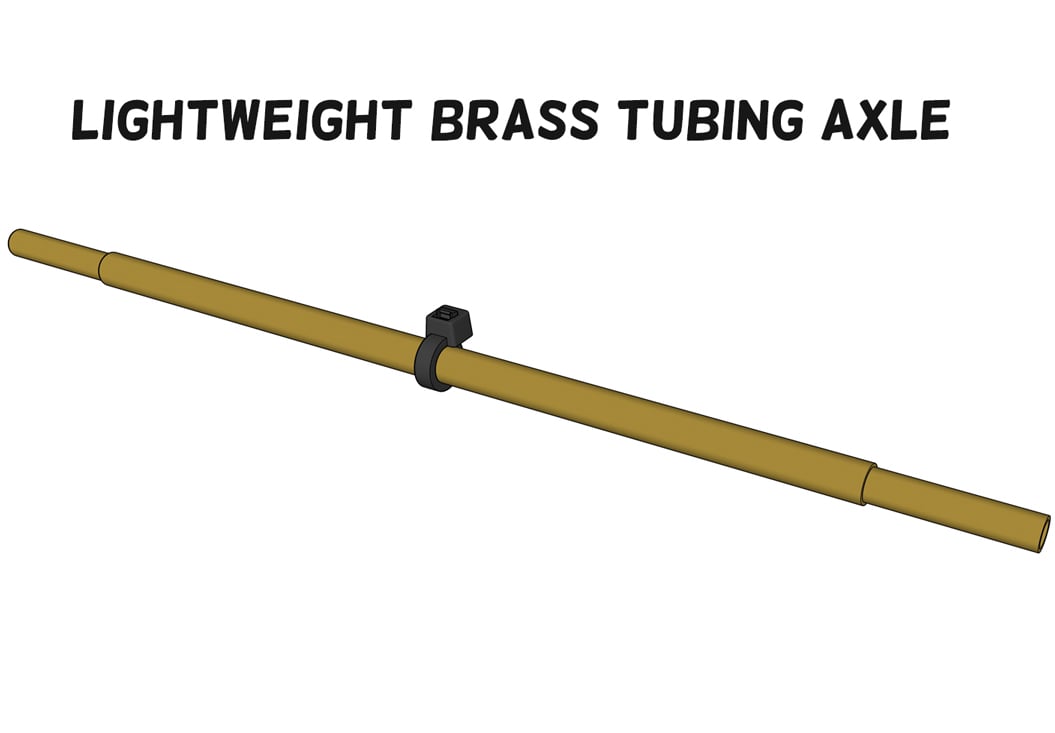

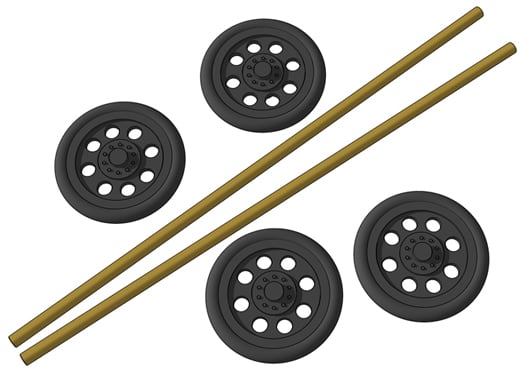

Ultra thin, low-inertia wheel and Axle System

Our low-inertia wheel and axle system includes our lightweight, 3/16" inch diameter brass tubing axles that spin with less friction than wooden dowels for an increase in both the speed and the travel distance of your vehicle. Lightweight brass-tubing axles will not warp like wooded dowels and have a lot less mass than steel axles used in many of our competitors kits so your rubber band vehicles will travel smoother, with less wobble, and less wasted energy for an increase in both speed and travel distance.
